FW-ED09 1535nm Eye-safe Laser Ranging Module

Name: FWED09 1535nm Eyesafe Laser Ranging Module
Brand: Forward
Price: 1 USD

Brand Name : Forward

Model Number : FW-ED09

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T

Supply Ability : 100 pcs/year

Delivery Time : 5-8 work days

Laser Wavelength : 1535±5nm

Launch Lens Diameter : Φ8mm

Receiver Lens Diameter : Φ20mm

Ranging Accuracy : ±2m

Range Resolution : ≤20 m

Divergence Angle : ≤1 mrad

Contact Now

Descriptions of FW-ED09 1535nm Eye-safe Laser Ranging Module

The FW-ED09 erbium glass laser rangefinder is developed and produced using the self -developed bonded crystal erbium glass laser. It belongs to the Class 1 eye - safe laser rangefinder. It can measure NATO targets at a distance of ≥3000m, featuring a small size and low power consumption. It is a precision optoelectronic product that calculates distance information by emitting laser to the target to be measured and based on the laser flight time. This laser rangefinder achieves communication through a 3.3V TTL communication interface, and is characterized by outstanding performance and simple operation.

Specifications of FW-ED09 1535nm Eye-safe Laser Ranging Module

Laser Wavelength	1535±5nm
Eye Safety	Class 1
Divergence Angle	≤1 mrad
Laser Energy	≥100 μJ
Launch Lens Diameter	Φ8mm
Receiver Lens Diameter	Φ20mm
Measuring Range(Reflectance 30%; visibility ≥ 5km.)	NATO objective(2.3m×2.3m) ≥3000m Measuring human target(0.5m×1.7m) ≥1500m
Minimum Range	≤15 m
Ranging Accuracy	±2m
Ranging Frequency	Single, 1Hz, 5Hz, 10Hz
Number of multi-target detections	Up to 3 targets
False Alarm Rate	≤1%
Precision Rate	≥98%
Pin-in-lead package model	FWF08002-S06B13W5M
Supply Voltage	DC 3-5 V
Standby Power Consumption	≤1mW
Average power consumption	≤0.8W
Peak Power Consumption	≤1.5W
Weight	≤29g±1g
Dimention (L×W×H)	Φ34mm×47.5mm
Operation Temperature	-40~＋70℃
Storage Temperature	-55~＋75℃
Impact Resistance	Meet the MIL-STD-810G testing standard
Vibration Resistance	Meet the MIL-STD-810G testing standard

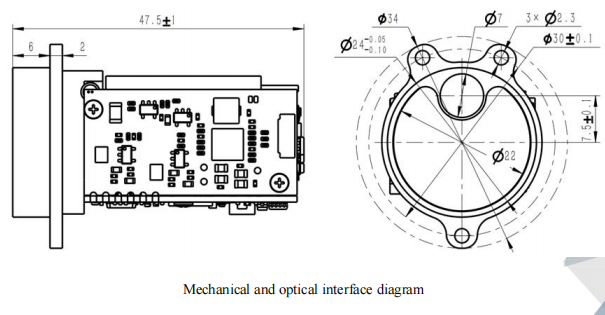

Outline Dimension(mm)
