FW-ED11 1535nm Eye-safe Laser Ranging Module

Name: FWED11 1535nm Eyesafe Laser Ranging Module
Brand: Forward
Price: 1 USD

Brand Name : Forward

Model Number : FW-ED11

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T

Supply Ability : 100 pcs/year

Delivery Time : 5-8 work days

Laser Wavelength : 1.54μm±0.02μm

Launch Lens Diameter : Φ12mm

Receiver Lens Diameter : Φ40mm

Ranging Accuracy : ±2m

Range Resolution : ≤30 m

Divergence Angle : ≤0.3 mrad

Contact Now

Descriptions of FW-ED11 1535nm Eye-safe Laser Ranging Module

The FW-ED11 laser rangefinder features eye protection, a compact design, light weight, energy efficiency, durability, and a wide temperature range. Its versatility shines brightly in reconnaissance,measurement, and mapping tasks. This module has no casing and is equipped with multiple interfaces,allowing it to be smoothly integrated into any system.In addition, it is equipped with PC host computer software and embedded software, enabling seamless integration into handheld and multifunctional systems.

Specifications of FW-ED11 1535nm Eye-safe Laser Ranging Module

Laser Wavelength	1.54μm±0.02μm
Eye Safety	Class 1
Divergence Angle	≤0.3 mrad
Laser Energy	≥300 μJ
Launch Lens Diameter	Φ12 mm
Receiver Lens Diameter	Φ40 mm
Measuring Range(Reflectance 30%; visibility ≥ 15km.)	4m×6m objective≥12km
Minimum Range	≤50 m
Ranging Accuracy	±2m
Ranging Frequency	0.5Hz~10Hz
Number of multi-target detections	RS422
False Alarm Rate	≤1%
Precision Rate	≥98%
Pin-in-lead package model	J30J
Supply Voltage	DC 12V
Standby Power Consumption	≤1.2W
Average power consumption	≤2W
Peak Power Consumption	≤3W@10Hz
Weight	≤275g
Dimention (L×W×H)	107mm×62mm×72mm
Operation Temperature	-40~＋70℃
Storage Temperature	-55~＋75℃
Impact Resistance	Meet the MIL-STD-810G testing standard
Vibration Resistance	Meet the MIL-STD-810G testing standard

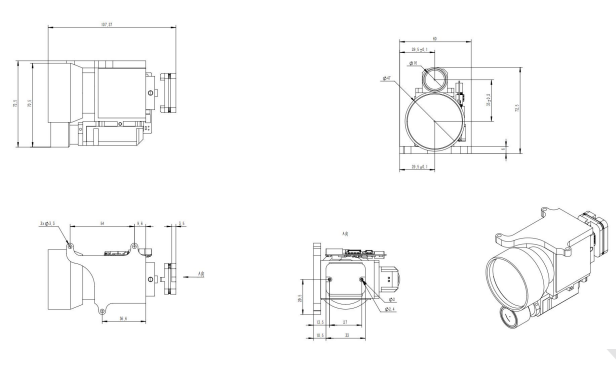

Outline Dimension(mm)

China FW-ED11 1535nm Eye-safe Laser Ranging Module wholesale

FW-ED11 1535nm Eye-safe Laser Ranging Module Images
